In this guide
A balance reads 80.0 g before a change and 76.0 g afterwards. A pupil writes, “Four grams vanished.” Before correcting the sentence, ask the class to draw a box around exactly what the balance was measuring. That boundary can change the explanation.
Try it in Class 9: a 40-minute paper investigation after introducing atoms, molecules and chemical equations. Learners rearrange particle cards, compare fictional system readings and explain where matter is accounted for. Use paper circles, two colours or distinct symbols, a pencil and the evidence cards below. No chemicals, sealed reaction vessel or live reaction is used.
Start with a model learners can count
Give each pair four small circles marked H and two larger circles marked O. Distinguish the symbols as well as the colours. Place the H circles in twoH–Hpairs and the O circles in oneO–Opair. These paper groupings represent 2 H₂+O₂. Ask learners to count each kind of atom before moving anything.
Their challenge is to rearrange the same circles into twoH–O–Hgroups, representing 2 H₂O. They may separate and regroup paper circles, but may not add a circle, discard one or turn anH into anO. This models the accounting of atoms in a chemical equation; the paper pieces do not reproduce an actual reaction or its energy changes.
| Representation | Hydrogen atoms | Oxygen atoms |
|---|---|---|
| 2 H₂+O₂ | 4 | 2 |
| 2 H₂O | 4 | 2 |
Write the balanced representation 2 H₂+O₂→2 H₂O. Ask why 2 H₂+O₂→H₂O does not match the starting cards. It leaves twoH circles and oneOcircle unaccounted for. The solution is a coefficient in front of the water formula, not changingH₂Oto an invented formula to make the count fit.
Connect counting to mass carefully
For this simplified model, take a hydrogen atom as 1 relative mass unit and an oxygen atom as 16. The fourH circles contribute 4 units; the twoO circles contribute 32. Both arrangements therefore contain 36 relative mass units. Each water grouping contributes 18, so two contribute 36. These are model mass units, not readings from a classroom balance and not a claim that one atom weighs a gram.
Ask: “Which change did our model allow, and which did it forbid?” Rearranging the groupings was allowed. Creating or destroying the counted atoms was not. A clear answer links the balanced representation to conserved matter, instead of treating balancing as a puzzle about matching digits.
Now give the balance reading a boundary

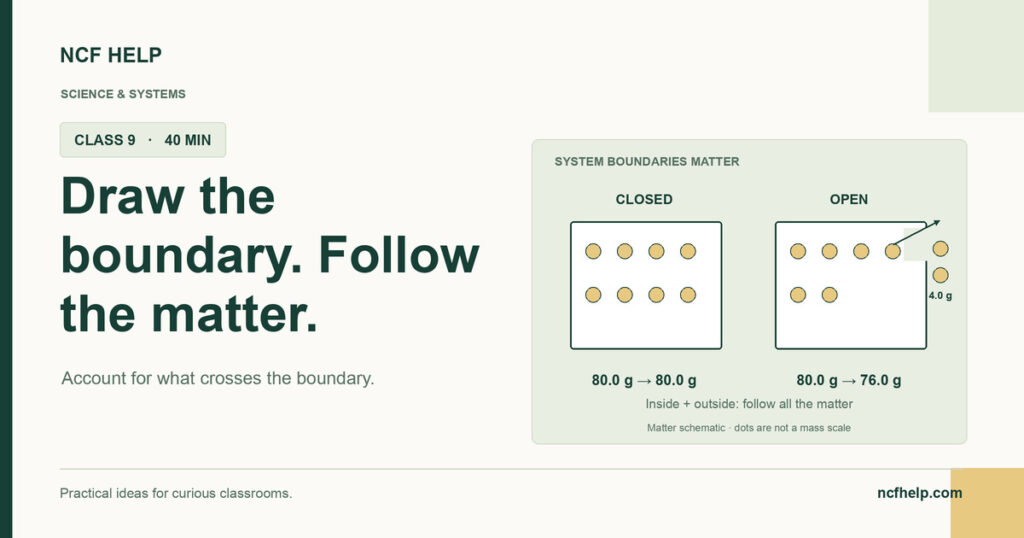

Read the following as two fictional evidence cards. They concern a separate, unnamed gas-producing change, not the water-formation paper model. Each beginning total includes a container and everything inside it. Keeping the examples separate prevents learners from inventing a real reaction from incomplete information.
| Card | What the balance includes | Before | After |
|---|---|---|---|
| C:closed system | Container and all material; no material crosses the boundary | 80.0 g | 80.0 g |
| O:open system | Container and material remaining inside; gas can leave into the surroundings | 80.0 g | 76.0 g |
On Card O, add the information: “A separate collection accounts for 4.0 g of gas outside the original container.” Pupils draw a boundary around the weighed container, mark an arrow showing gas leaving and label the matter outside. They then draw a larger boundary that includes both the remaining contents and the escaped gas.
Teacher check: what the evidence supports
Card C measures the same closed system before and after, so its 80.0 greading is unchanged. Card O’s smaller final reading is the mass of a different collection of matter: the gas has left the part still on the balance. The accounting is 76.0 g+4.0 g=80.0 g. Matter has not been shown to vanish.
A suitable explanation is: “The open container’s reading fell because 4.0 g of gas moved beyond the measured boundary. When that gas is included, the total is still 80.0 g.” The phrase “mass was lost” needs a named system: lost from the weighed container is different from destroyed.
If the escaped gas had not been measured, pupils could propose gas escape as an explanation consistent with the open boundary. They could not claim that a measured 4.0 g of gas was observed. Ask them to distinguish the supplied evidence from the additional evidence they would request.
Give every learner a route into the reasoning
- 0–5 minutes: discuss the falling balance reading and draw a first boundary.
- 5–15: build, count and rearrange the particle cards.
- 15–22: check the relative-mass accounting.
- 22–32: annotate CardsC/O and explain the gas transfer.
- 32–37: compare explanations with another pair.
- 37–40: complete the exit check.
Provide printedH/Otokens or allow a partner to move pieces at a learner’s direction. A pupil can circle matching atom counts, dictate a boundary explanation or use raised/tactile tokens. Keep symbols large enough to distinguish without relying on colour. For a stretch, ask pupils to explain how oxygen entering an open system could make its measured mass increase while overall matter remains conserved.
During peer checking, give one precise prompt: “Point to the matter included in this number.” A response can contain the right arithmetic yet refer to the wrong boundary. Similarly, a correctly balanced equation is not enough if the pupil cannot show where every atom went. These are different pieces of evidence about understanding.
End with a claim that survives a challenge
Ask learners to finish: “A smaller reading on a balance does not by itself show that matter was destroyed, because___. On Card O, I would include___to account for the original total.” Look for movement across a boundary and an explicit reference to the gas. In the next lesson, reuse that question when considering evaporation, dissolving or another familiar change.
The matter and representation focus connects with CBSE’s Class IX Science curriculum for 2026–27. Compare the habit of controlling a model with the shadow investigation, and use the environmental-science model lesson to discuss what an observation can and cannot establish.
