A light seed can travel without a pair of legs. A paper model can turn as it falls. Put those two observations beside each other and a useful question appears: what changes when we fold the same paper in a different way? This lesson gives Class 5 learners something to build, test and explain.
A 45-minute Class 5 investigation: make two paper spinners with the same dimensions, then change only their blade-fold arrangement. Repeat releases and record whether each model completes a full turn. Use ordinary paper, ruler, pencil, child-safe scissors and a clear floor space. An adult prepares cutting lines and manages the release height; nobody climbs.
Begin with a real question about seeds
Look at a teacher-provided photograph or safe, familiar seed specimen. Ask how its shape might help it move. In NCERT’s Seeds and Seeds, the wandering-seeds discussion invites children to notice seeds that travel through the air and seeds that attach to other things. This optional paper investigation develops a model-and-evidence question alongside that observation.
State the question narrowly: “With the same paper and release procedure, does an opposite-fold spinner complete a full turn more often than a same-fold spinner? ” The paper is an engineering model. It is not a seed, and this test will not establish how far a natural seed travels or whether it can germinate.
Make an original two-blade template

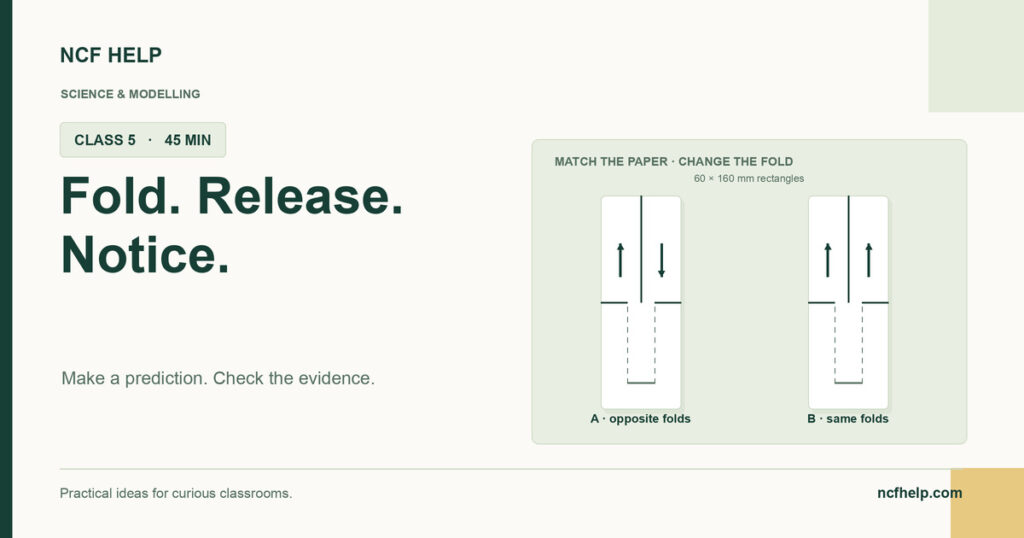

Prepare two rectangles from the same sheet of ordinary paper, each 60 mm wide and 160 mm tall. Label them A and B in small pencil letters. Show a large demonstration copy before pupils cut. All measurements below start at the top edge unless stated otherwise.
| Mark | What to draw or do |
|---|---|
| Blade division | Mark the centre at 30 mm. Draw a straight cut from the top edge down 80 mm. |
| Blade/body boundary | At 80 mm below the top, draw a 20 mm inward cut from each side edge. Leave the middle 20 mm connected. |
| Body folds | Below that boundary, mark vertical fold lines 20 mm from each side. Fold both side panels inward toward the middle. |
| Weighted base | Fold the bottom 20 mm upward. Make the same fold on both models. |
| Model A | Fold the two top blades along their bases in opposite directions: one toward you, one away. |
| Model B | Fold both blades toward you. Keep every other cut and body fold the same. |
Cuts follow only the blade division and the two short side lines. Do not cut across the connected middle. The lower body stays attached to both blades. Use no clips, tape or added weights in this comparison. If construction is difficult, provide pre-cut pieces and let learners make the blade-fold decision themselves.
Agree on a procedure before releasing
- Choose an uncluttered indoor space away from noticeable draughts. Keep normal ventilation and comfort; record any moving air rather than making the room uncomfortable.
- An adult marks a release height of 1 metre above the floor. Hold the folded body vertically at that mark, then let go without pushing or flicking. A shorter accessible height is acceptable if it stays the same for every release.
- Mark one blade tip with the same small pencil mark on both models. Agree what a full turn looks like. Use “unsure” when the observation is unclear; do not turn a guess into a result.
- Release A then B three times each, one model at a time. Use the same operator and procedure. An observer watches from a safe position; another learner records.
- Check the folds after each landing. If a model is damaged or a release is pushed, record that event and repeat the affected release fairly.
Keep fingers away from faces when releasing, and collect each model only after it lands. Use scissors under adult supervision. No real seeds need to be thrown or tasted. Learners may take the roles of template checker, observer, recorder or explainer; no one has to reach above a comfortable height.
Give every observation a place
| Release | A: full turn? | B: full turn? | Anything unusual? |
|---|---|---|---|
| 1 | Yes / No / Unsure | Yes / No / Unsure | ___ |
| 2 | Yes / No / Unsure | Yes / No / Unsure | ___ |
| 3 | Yes / No / Unsure | Yes / No / Unsure | ___ |
Plan the lesson in five parts: 5 minutes noticing seed shapes, 12 minutes marking and making, 5 minutes agreeing on the test, 15 minutes releasing and recording, and 8 minutes comparing explanations. Have an adult pilot one pair before class so cutting and folding can be demonstrated clearly. Use the recording table even when the model behaves unexpectedly.
While groups work, ask what was changed and what was kept alike. The changed feature is the blade-fold arrangement. The paper type, rectangle dimensions, body folds, release height and release method should stay alike. This is a practical comparison of two designs, not a measurement of one isolated aerodynamic property.
Read the evidence without promising a winner
For paper-only discussion, offer this invented practice dataset: A records Yes, Yes, Yes; B records No, Yes, No. Ask learners to count releases with a full turn, and choose a conclusion that stays within the evidence. These are made-up numbers for practising interpretation; they are not results from a school trial.
Teacher check: what the practice data can support
A completes a full turn in 3 of 3 releases; B does so in 1 of 3. A supported statement is: “In these practice observations, A completed a full turn more often.” It does not follow that B can never turn, that A falls more slowly, or that real seeds using this shape always travel farther. None of those things was measured.
Repeating a release shows some variation in the test, but three releases of one prototype are not three independently built models. A useful extension is to build a second matched pair and see whether the pattern repeats. Record uncertain observations openly rather than deleting inconvenient results.
Air interacts with the folded surfaces as the model falls, and changing their arrangement can change its turning behaviour. Children do not need to calculate lift or learn an equation to explain their observations. Ask them to point to the changed structure and describe the repeated evidence, then name one limit of the model.
End with a four-part notebook response:Our question…; we changed…; our records show…; we still cannot tell… Offer sentence starters, oral answers or a drawn sequence. Assess whether the comparison and conclusion match, not whether the group achieved a spectacular flight.
Continue the predict-test-explain habit with the site’s environmental-science worksheet collection or, next stage, the shadow investigation. For further paper engineering, see NASA/JPL’s paper-helicopter activity. The dimensions, comparison question and practice records here are original; this classroom version uses a fixed low release and no climbing.
